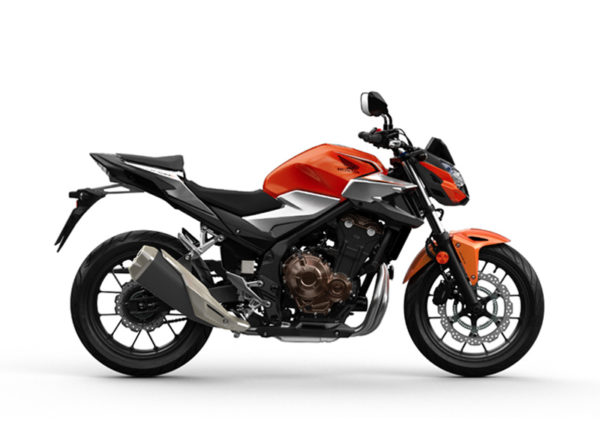

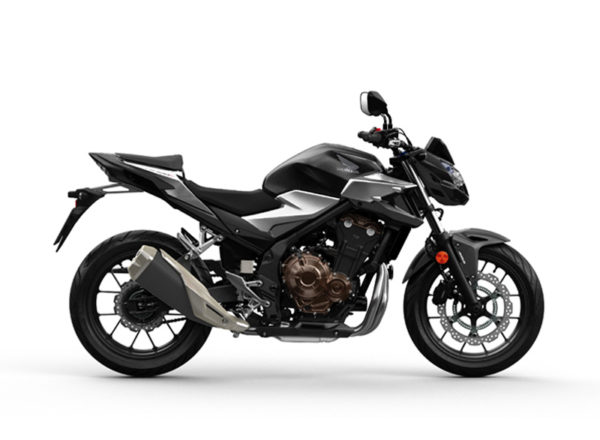

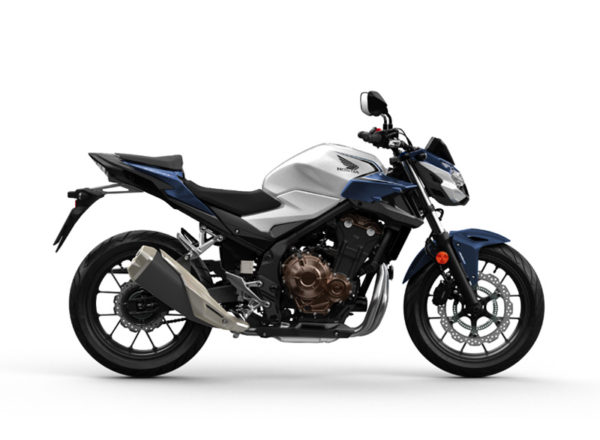

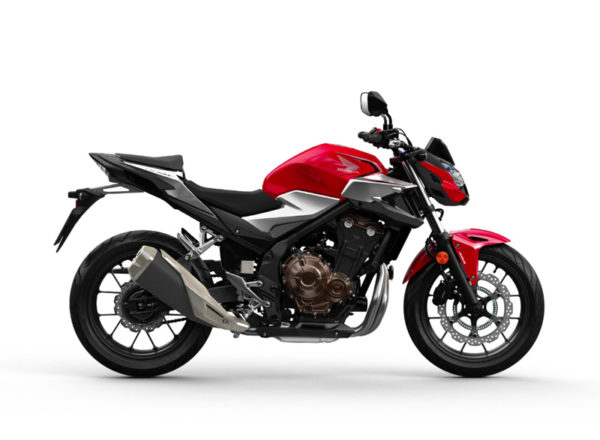

CB500F 2019

£5,559.00


Description:

MOVING UP

Rapidly accelerating from a standing start at a traffic light or racing through the slick six-speed gearbox at high rpm out on the open road: the CB500F offers you an infinite new playground.

Model Specification


  • Engine
    Engine Type

    Liquid-cooled 4-stroke DOHC parallel twin

    Engine Displacement

    471cc

    Bore and Stroke

    67mm x 66.8mm

    Carburation

    PGM-FI electronic fuel injection

    Compression Ratio

    10.7:1

    Ignition

    Starter

    Electric

    Oil Capacity

  • Performance
    Max Torque

    43Nm / 6500 rpm

    Max Power

    35kW / 8600rpm

  • Dimensions
    Length x Width x Height

    2,080mmX790mmX1,060mm

    Wheelbase

    1,410mm

    Ground Clearance

    145mm

    Seat Height

    789mm

    Fuel Capacity

    17.1 L

    Tyres Front

    120/70ZR-17M/C

    Tyres Rear

    160/60ZR-17M/C

    Brakes Front

    320 mm x 5 mm disc with two piston caliper

    Brakes Rear

    240 mm x 5 mm disc with single piston caliper

    Dimensions

    2,080mmX790mmX1,060mm

    Kerb Weight

    189kg

    Dry Weight

  • Wheels
    Suspension Front

    Conventional Telescopic, 41mm, pre-load adjustable

    Suspension Rear

    Prolink mono with 5 stage pre-load adjuster, steel square pipe swingarm

    Wheels Front

    Multi-Spoke Cast Aluminium

    Wheels Rear

    Multi-Spoke Cast Aluminium

  • Transmission
    Transmission

    Gearbox

    6-speed

    Final Drive

    Chain

    Transmission Type

  • Frame
    Frame Type

    Steel diamond
